4 axles lowbed trailer is a customized product, typically available in lengths of 13 or 14 meters. Customers can select a length ranging from 12 to 16 meters. We recommend the appropriate number of axles based on the required load and local regulatory policies. Customers often choose low bed trailers to transport excavators, rollers, loaders, and other construction machinery. Additionally, we can install container locks on the platform for transporting containers.
Lowbed semi trailer is the optimal choice for transporting heavy equipment due to its low working platform and stable center of gravity. The height of the working platform from the ground ranges from 1,100 to 1,300 mm. A typical 4-axle lowbed trailer is generally 3 meters wide, although some customers opt for widths of 2,800 mm, 3,200 mm, or 3,500 mm. we can also install extensions on the lowbed trailer to increase the platform width by 250 or 300 mm on each side.
Below are the main parameters of our 4 axles low bed trailer for your reference. Since low bed trailers are customized products, we will communicate with customers in detail about their needs before providing a quotation, followed by a comprehensive lowbed quote.
4 Axles Lowbed Trailer for Sale | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 14,000 x 3,000 x 1,700mm （loading platform height 1200-1300mm) |
Load capacity | 80 Tons |
Working deck | 10,000mm (Length) |
Axle | 16 Tons, 4 axles, factory configuration |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 20mm ；Middle plate: 14mm Bottom plate: 25mm |
Side Beam | 280mm/300mm 工Beam |
Bottom Plate | 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 8 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand 28 TONS |
Braking system | WABCO Emergency relay valve |

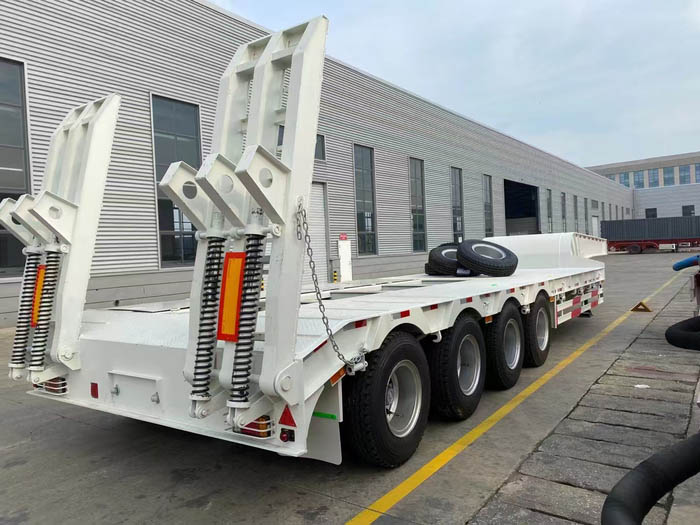

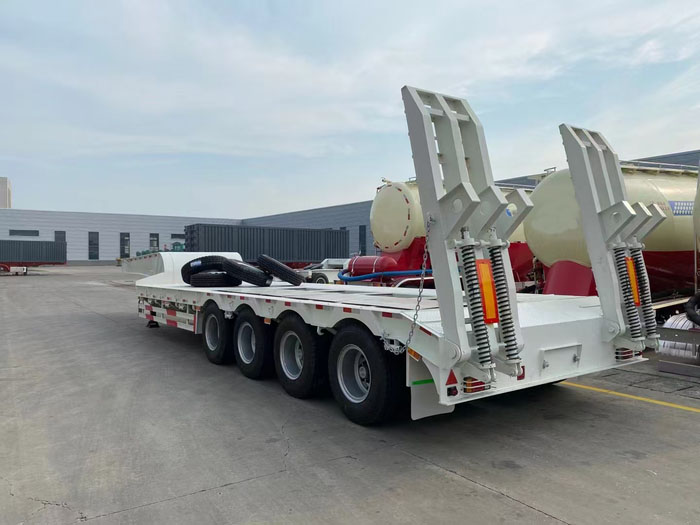

Rear Ramps | Heavy duty spring ramp |
Tire Type & Size * NO. | 12R22.5 & 16 pcs |
Rim Size * NO. | 9.00*22.5 & 16 pcs |
4 axles lowbed trailer for sale
4 axles lowbed trailer price
80 tons low bed semi trailer for sale price
Low loader trailer for sale near me
The main beam of the low bed trailer is reinforced, upper flange thick 20mm, bottom flange thick 25mm, which is thicker than that of other low bed trailers on the market, providing the trailer with enhanced load-bearing capacity.
The mechanical suspension has been widened and thickened, leaf spring thickness of 16 mm. Most low bed trailers on the market utilize 13 mm thick leaf springs. Our low loader trailer has higher stability, making it more suitable for complex road conditions.
We have reinforced over 20 components of the low-bed trailer that are susceptible to breakage, particularly the gooseneck. We employ double plate reinforcement, and the main beam features double vertical plates to ensure the quality of the semi-trailer and extend its service life.
Our low bed semi trailer is available with either 13-ton or 16-ton axles, but all models are equipped with 16-ton brake pads. Most low bed trailers on the market still utilize 13-ton brake pads; however, the 16-ton brake pads provide enhanced safety during operation.
Our low bed semi-trailers are equipped with JOST landing gear, JOST kingpins, and WABCO brake valves. Customers also have the option to select BPW axles. The entire vehicle is designed with high-quality components to minimize unnecessary maintenance costs for our customers.
Enhanced mechanical suspension: ensure lowbed trailer more suitble for bad road condition.
Heavy duty lowbed ladder: safety and durable
Thickened tool box: under the semi low bed trailer gooseneck.
5mm anti-slip pattern plate:
lowboy trailer with extensions
Air suspension: low loader trailer can choose air suspenion
Low bed truck trailer alxe:
FUWA, BPW axle
1. We will use straps or chains to secure all the scattered parts on the low bed semi trailer working platform.
2. Before leaving the factory, we will apply a thick layer of wax to the semi low bed trailer to prevent paint corrosion during sea transportation.
3. The lowbed trailer will be covered with a rain cloth before shipment, so that the lowboy trailer will not rust after customer receives it.
