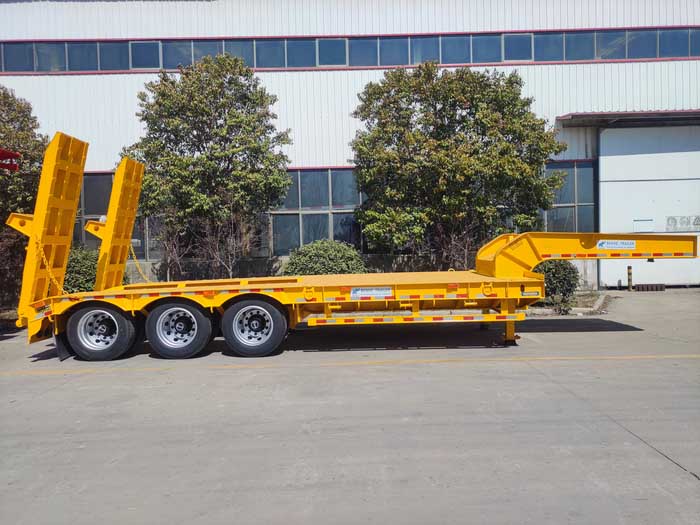

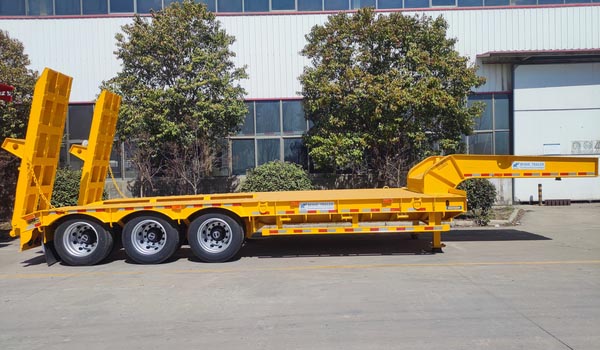

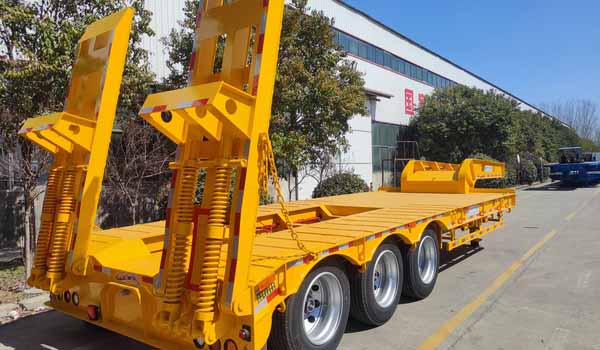

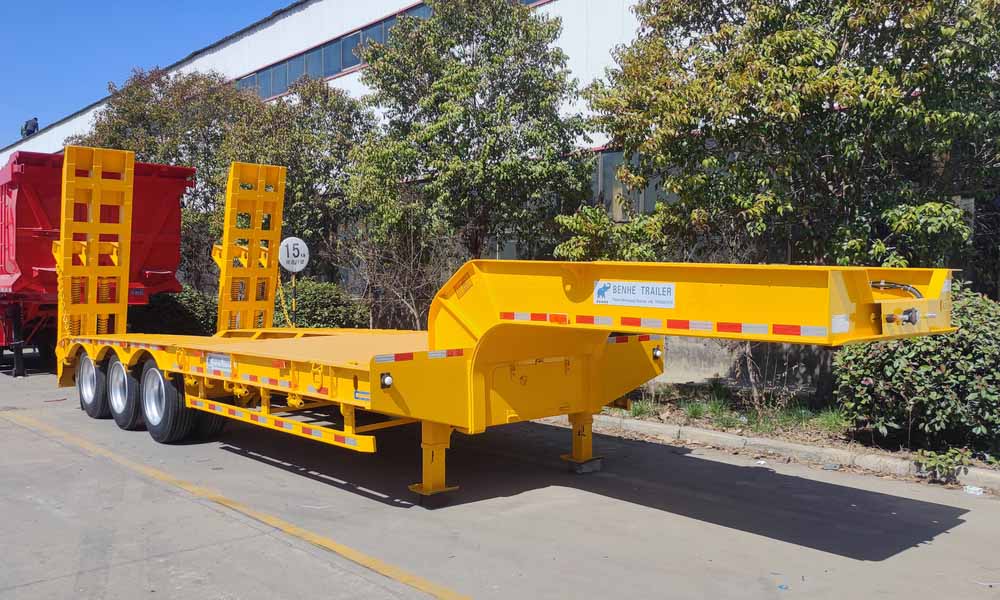

Tri axle low loader trailer has strong stability and large carrying capacity, it can keep excellent balance and stability when transporting heavy machinery.
The low loader trailer has a lower working platform, easy for loading and unloading of goods. Additionally, the three-axle low bed trailer can be customized and adjusted according to customer requirements, such as adding an extension platform or installing guardrails.
3 axle low loader trailer is made of high-quality Q345 steel, main beam height of 500 mm, this steel with excellent toughness and durability, suitable for challenging road conditions. Usually, the lowbed trailer is equipped with either 12R22.5 or 315/80R22.5 tires. Widened and reinforced leaf spring suspension, which provides a strong load-bearing capacity, a low failure rate, and reduced maintenance costs.
BENHE low loader trailer also features a special design that connects the main beam, side beam, and tilted supports as a unified structure to improve load-bearing capacity, which increases the trailer's loading capacity by at least 20%.
Tri axle low loader trailer | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,000 x 3,000 x 1,750mm （Gooseneck height) |
Load capacity | 70 Tons |
Working deck | 9000mm (Length) |
Axle | 16 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 20mm ；Middle plate: 12mm Bottom plate: 22mm |
Side Beam | 280mm*140mm 工 Beam |
Bottom Plate | 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand |
Braking system | WABCO Emergency relay valve |

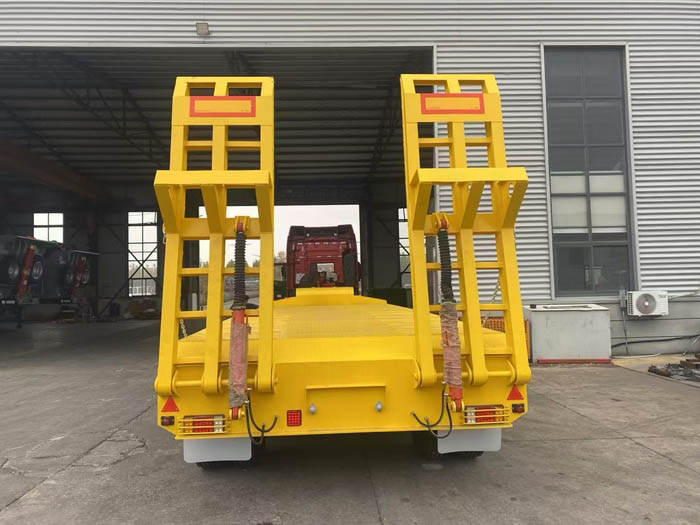

Rear Ramps | Heavy duty spring ramp |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.00*22.5 & 12 pcs |
Tri axle low loader trailer supplier
China tri axle low loader trailer
Strong carrying capacity
The tri axle low loader trailer with 13 tons axles, 16 tons brake pads, thickened main beam and mechanical suspension, ensuring that the lowbed trailer has a high capacity.
High transportation efficiency
Lowering the center of gravity of the vehicle improves stability during transportation, reduces damage to goods caused by bumps, and makes cargo loading and unloading more convenient and efficient.
Strong adaptability
The 3 axle low bed trailer can transport various types of goods. Including large equipment such as excavators, rollers, loaders, etc.
High safety
The three axle lowbed truck trailer adopts a well-designed axle layout and increased tire spacing, along with other technical enhancements, to improve driving stability. Its low center of gravity minimizes the risk of accidents, such as rollovers.
Reliable quality
Our 3 axles lowbed semi trailer is equipped with internationally renowned accessories, such as JOST, WABCO, FUWA, etc., to ensure durability and an extended service life for the vehicle.
The low loader trailer will be coated with wax and covered with a tarpaulin to protect the paint surface from erosion during sea transportation.
We will select the most suitable transportation plan for our customers, whether it be a bulk carrier or a RORO (Roll-on/Roll-off) vessel.
Jinan Benhe Machinery Co., Ltd., also known as Benhe Vehicle, is a semi-trailer manufacturer that integrates product design, research and development, production, and sales. Our company's primary products include low-bed semi-trailers, flatbed semi-trailers, container transporters, dump semi-trailers, tank semi-trailers, powder and granular material semi-trailers, etc. It currently has a production capacity exceeding 6,000 semi-trailers of various types.
Our factory is located in Liangshan County, Jining City, Shandong Province, China. With over 15 years of experience in the production and export of semi-trailers, we specialize in flatbed semi-trailers, tank semi-trailers, and low-bed semi-trailers. Our products have been distributed globally, reaching countries such as Tanzania, Kenya, Zimbabwe, Uganda, Zambia, Rwanda, Zimbabwe, Nigeria, Ghana, Cote d'Ivoire, Senegal, Sierra Leone, Saudi Arabia, the UAE, the Philippines, Vietnam, Mexico, Chile, Ecuador, Peru, Guyana, and Suriname, among others.
