Lowbed truck trailer with side extensions is a specialized transport vehicle designed for transporting extra-wide, extra-long, or heavy-duty equipment. The width of the extended deck on each side ranges from 20 cm to 30 cm, thereby increasing the area of the cargo deck, the low bed trailer dimensions and load capacity can be customized according to customer needs.
Lowbed truck trailers are usually made of carbon steel and equipped with 3 axles or 4 axles, load capacity from 40 tons to 120 tons. They are commonly used in the logistics and transportation of non-detachable oversized goods, including wind power equipment, construction machinery, and large steel structures.
BENHE Lowbed truck trailer with side extensions also features a special design that connects the main beam, side beam, and tilted supports as a unified structure to improve load-bearing capacity, which increases the trailer's loading capacity by at least 20%.
Lowbed truck trailer with side extensions | |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,000 x 3,000 x 1,700mm （Gooseneck height) |
Load capacity | 60 Tons |
Extensions | Each side extension with 20cm to 30cm |
Axle | 16 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 18mm ；Middle plate: 10mm Bottom plate: 20mm |
Side Beam | 280mm*140mm 工 Beam |
Bottom Plate | 5mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST Brand |
Braking system | WABCO Emergency relay valve |
Rear Ramps | Heavy duty spring ramp |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.00*22.5 & 12 pcs |

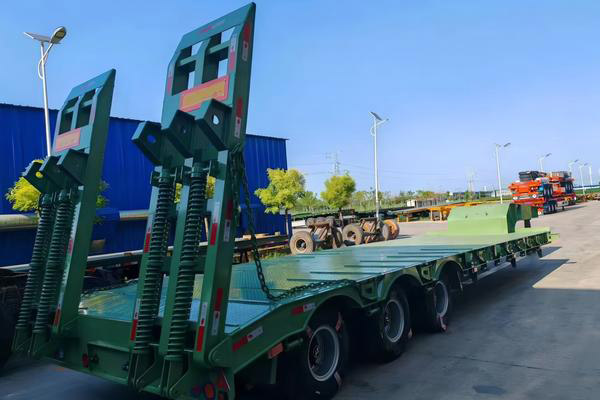

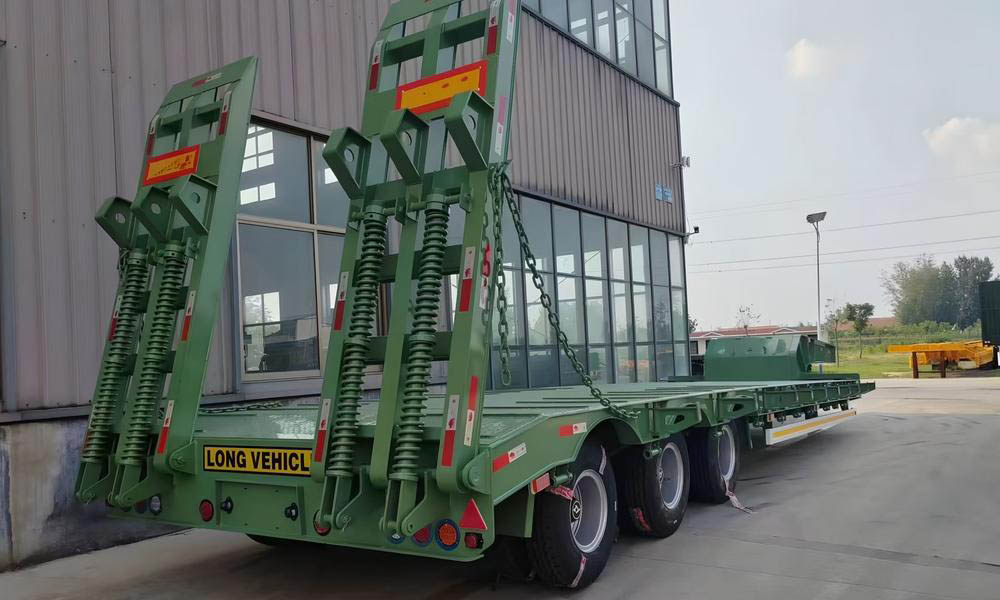

Lowbed truck trailer with side extensions

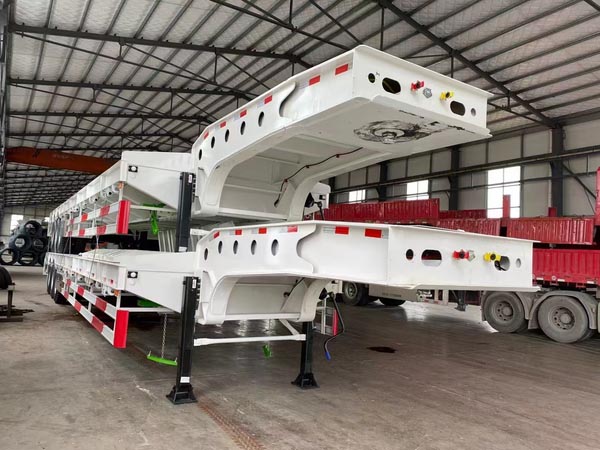

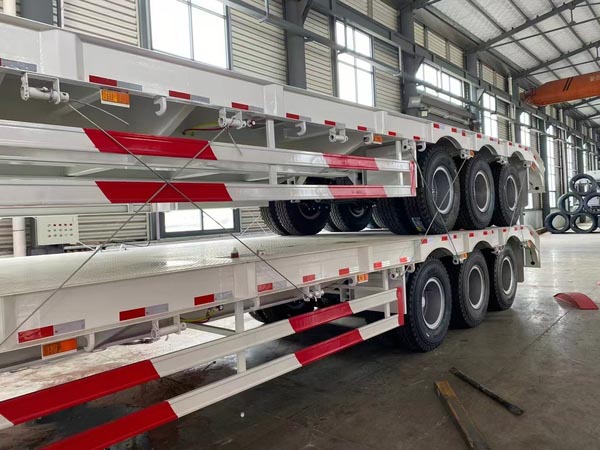

Low boy trailer supplier

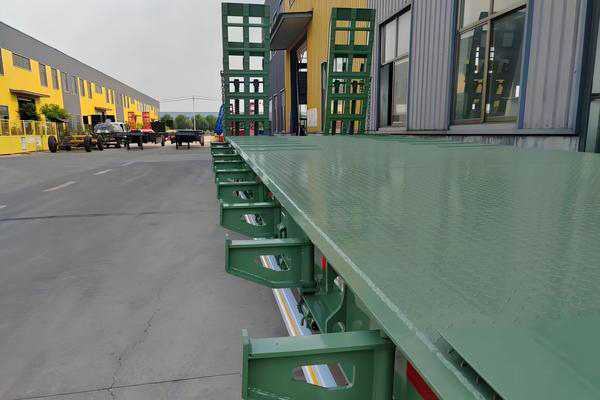

Flexible Cargo Space
Lowbed truck trailer with side extensions can increase the cargo platform area and accommodate cargo of various sizes without requiring a change in the model.
Efficient Loading
The extended platform complies with road width regulations when closed, maximizes the loading area upon expansion, reduces the empty load rate, and enhances the efficiency of individual transportation.
Low Center of Gravity Design
The working platform of the low deck trailer is adjustable, ranging from 0.8 meters to 1.3 meters above the ground, which can be customized according to customer requirements, it is very suitable for transporting tall or high-center-of-gravity cargo.
Multi-Axle Load Capacity
Low bed semi trailer is typically equipped with three or more axles, allowing it to carry a load capacity of 40 to 120 tons.
Adapt to Complex Cargo
The low boy trailer can transport containers, bulk cargo, irregularly shaped equipment, and more, thereby reducing transportation costs.
Easy Loading and Unloading
Lowbed truck trailer is equipped with a heavy-duty mechanical or hydraulic ladder to facilitate forklift and crane operations.
The low loader trailer will be coated with wax and covered with a tarpaulin to protect the paint surface from erosion during sea transportation.
We will select the most suitable transportation plan for our customers, whether it be a bulk carrier or a RORO (Roll-on/Roll-off) vessel.
Jinan Benhe Machinery Co., Ltd., also known as Benhe Vehicle, is a semi-trailer manufacturer that integrates product design, research and development, production, and sales. Our company's primary products include low-bed semi-trailers, flatbed semi-trailers, container transporters, dump semi-trailers, tank semi-trailers, powder and granular material semi-trailers, etc. It currently has a production capacity exceeding 6,000 semi-trailers of various types.
Our factory is located in Liangshan County, Jining City, Shandong Province, China. With over 15 years of experience in the production and export of semi-trailers, we specialize in flatbed semi-trailers, tank semi-trailers, and low-bed semi-trailers. Our products have been distributed globally, reaching countries such as Tanzania, Kenya, Zimbabwe, Uganda, Zambia, Rwanda, Zimbabwe, Nigeria, Ghana, Cote d'Ivoire, Senegal, Sierra Leone, Saudi Arabia, the UAE, the Philippines, Vietnam, Mexico, Chile, Ecuador, Peru, Guyana, and Suriname, among others.
