Container flatbed trailer is a widely used type of semi trailer, primarily designed for transporting containers and bulk cargo. Our Benhe Group has a specialized production line for flatbed semi trailers, focusing on the manufacture of 20 foot, 40 foot, and 45 foot flatbed semi trailers
The 3-axle flatbed semi trailer with front board is our best-selling model, featuring 12 locks that can transport one 40 foot container or two 20 foot containers. Our clients in Tanzania, Kenya, Zambia, and Zimbabwe primarily purchase our trailers for logistics transportation, which includes both domestic and cross-border shipping. These trailers are commonly used to transport a variety of goods, including transporting food, steel, cement bag, and more.

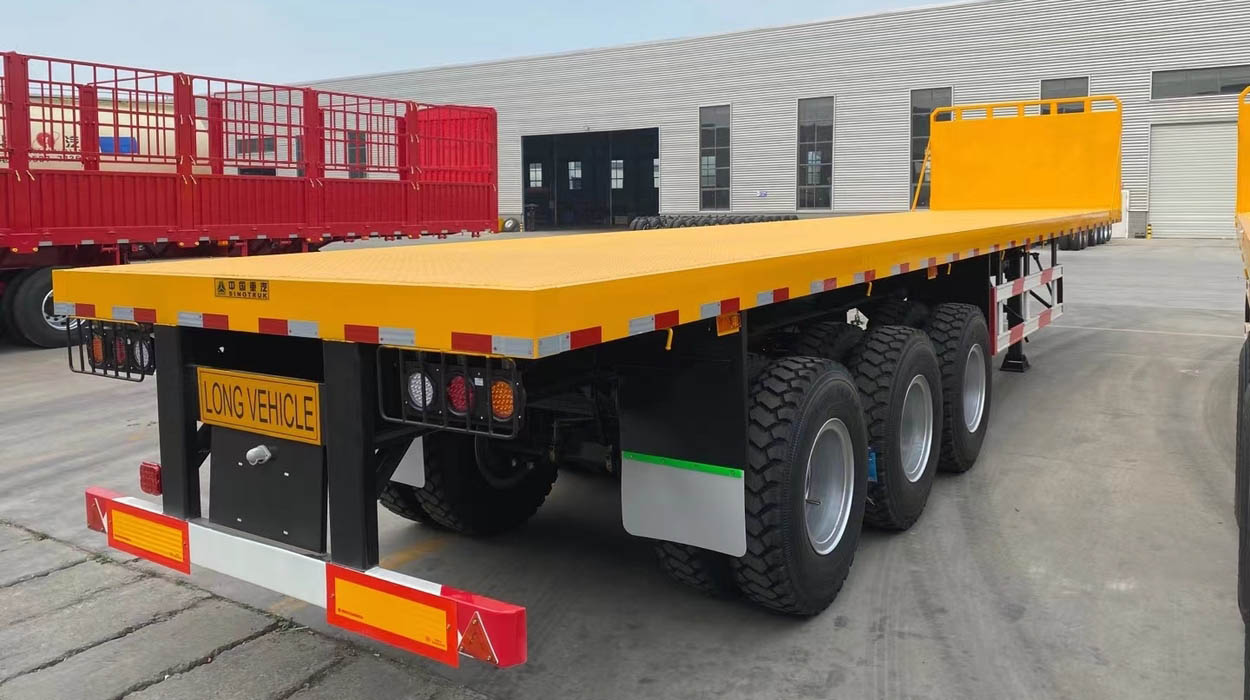

40ft container flatbed trailer with front board | |
Manufacturer | Jinan Bnehe Machinery Co.,Ltd |
Dimensions | 12,500 x 2,500 x 1,500mm |
Load capacity | 60 Tons |
Tare weight | around 7,000 KG |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 16mm ；Middle plate: 10mm Bottom plate: 18mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Container Twist Lock | 12 pcs |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.00*22.5 & 12 pcs |

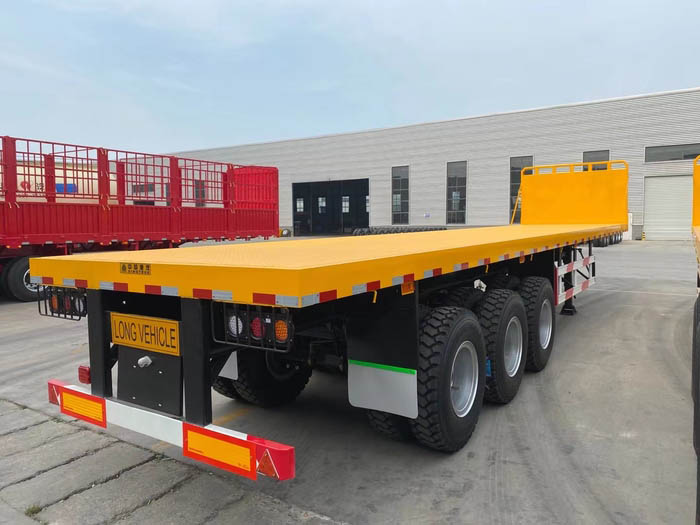

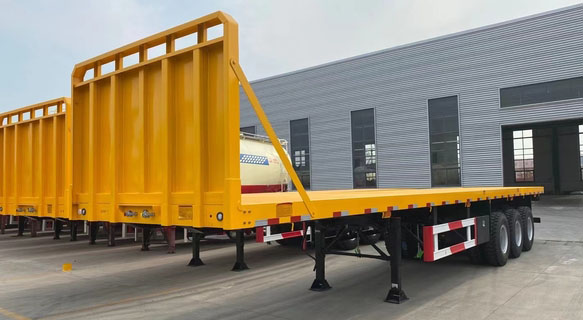

3 axles 40ft flat deck trailer

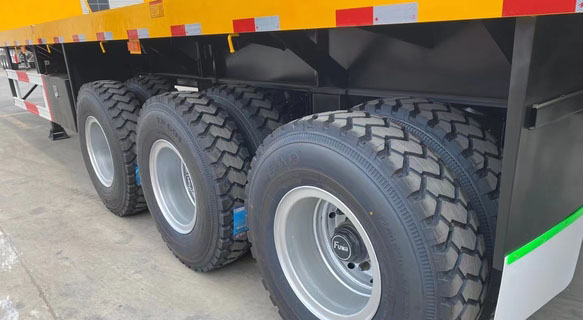

60 tons flatbed semi trailer

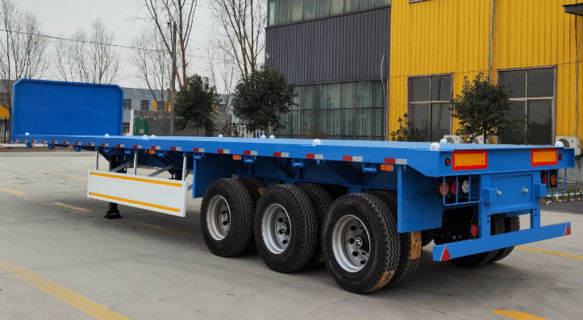

3 axles flatbed container trailer

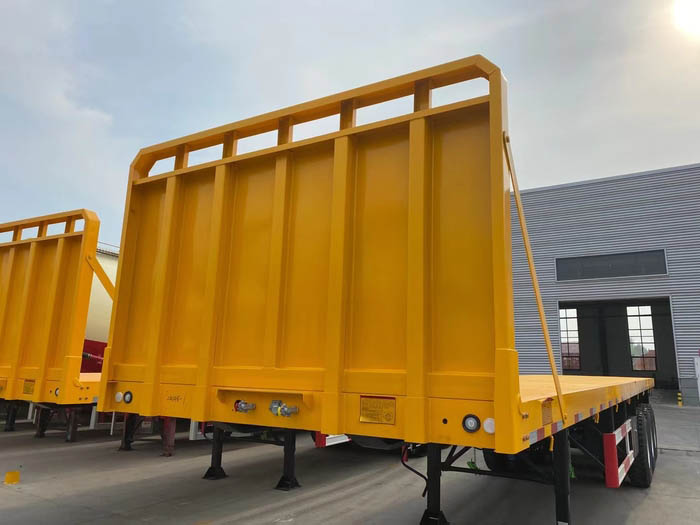

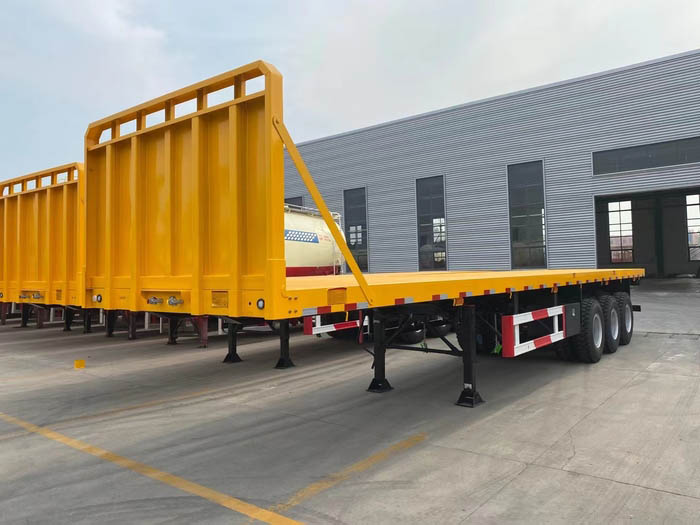

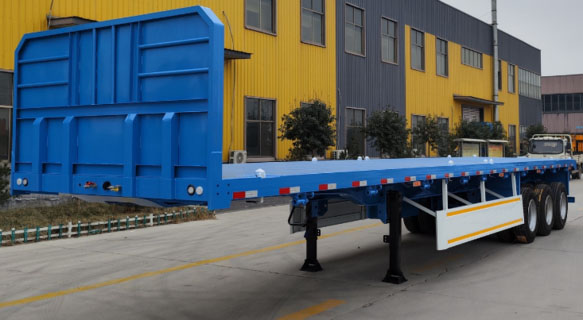

40 feet flatbed trailer with front board
The 3 axle flatbed trailer made of high-strength Q345B steel, manganese steel has good toughness, not easy to break, more suitable for rough road conditions.
Our flat deck trailer has 6 pcs beams under the floor plate, ensuring that there are no hollow areas on the floor during use. It will not distort when heavily loaded.
We use double plates to reinforce the gooseneck, enhancing the stability and capacity of the main beam.
The flatbed deck mechanical suspension is thickened, thickness 8mm, thicker than other suppliers, bottom plate features a 3 mm patterned design, ensuring a longer service life for the flatbed trailer.

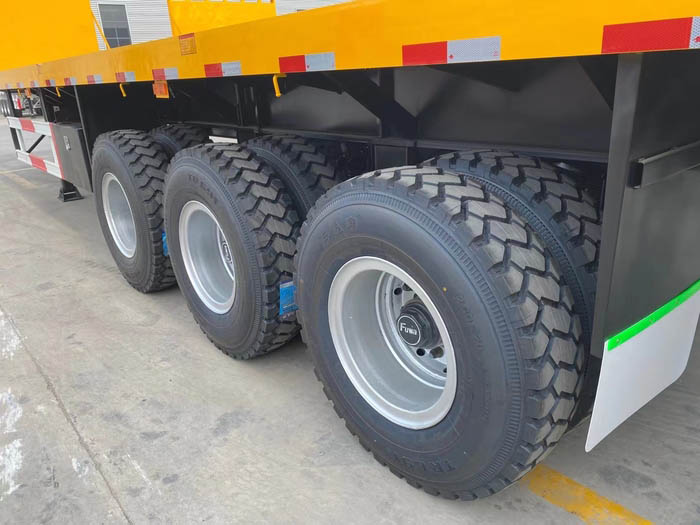

Flatbed tractor trailer adopts 13 tons axles, braking lining is 16 tons, which reduce braking distance and enhance trailer safety.
All crossbeams are supported by inclined support frames, with a distance of only 50 cm between the two support frames, ensuring the stability and load-bearing capacity of the flat deck trailer.
Flatbed truck trailer are welded by fully automatic robots. The welding is smooth, tight, and firm, and the surface is coated with plastic and painted.
Spray wax and cover with rain cloth before shipment, to ensure the flatbed trailer will not rust or peel during transportation.
1. Waterproof wax is sprayed before leaving the factory, and flatbed trailer covered with waterproof rain cloth.

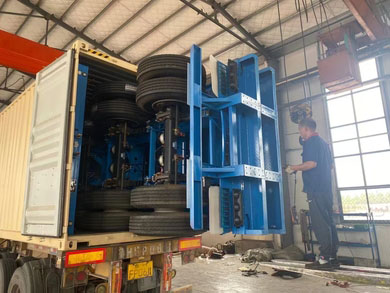

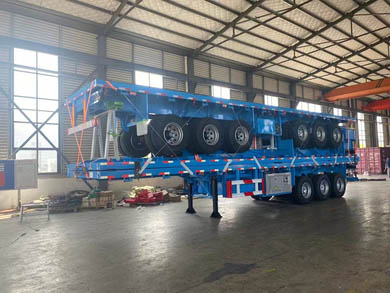

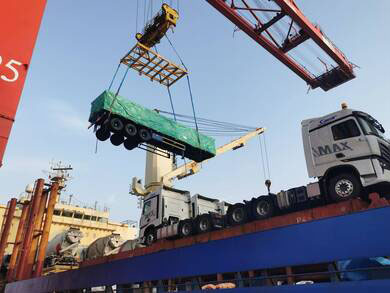

2. Choose the most cost-effective transportation method for customers based on the number of flatbed trailers required by customers. There are generally 3 flatbed container trailers as a stack for shipment ,bulk shipment, Ro-Ro shipment, container shipment.
