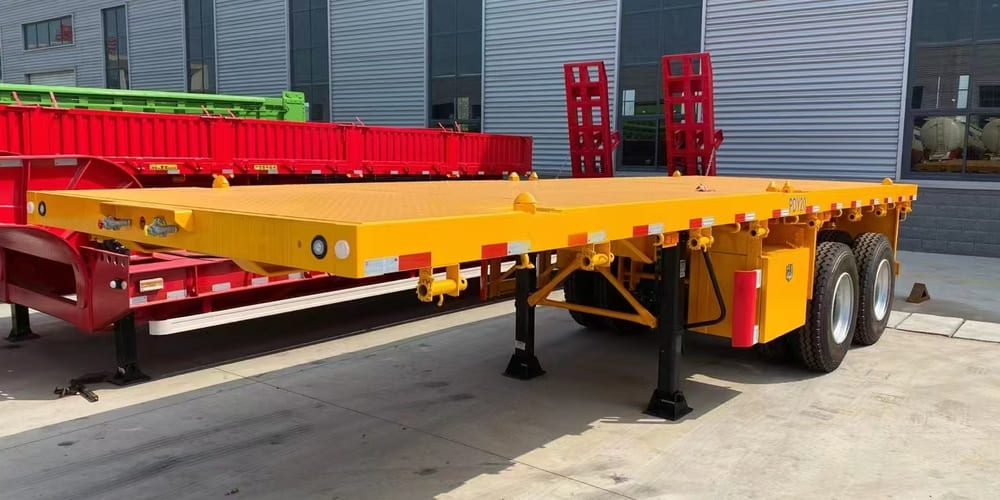

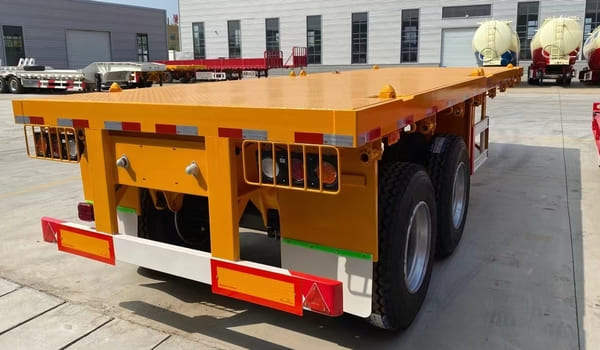

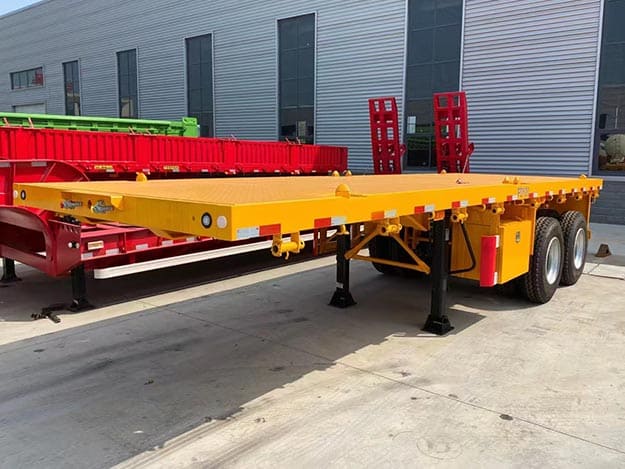

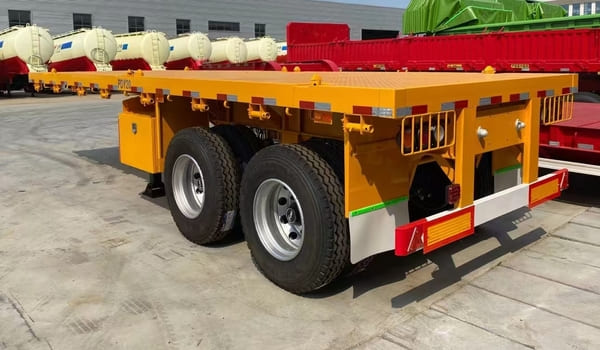

2 axles flatbed trailer is specifically designed for the transportation of various containers. The flatbed trailer with 8 or 12 pcs containers, its load capacity from 40 to 60 tons, the trailer is built for long-term use and possesses sufficient strength for repeated operations.
Container flatbed trailer can be quickly loaded and unloaded, and it can be easily transferred from one mode of transportation to another.
In addition to our 2 axles flatbed semi trailer, we also offer 3-axle and 4-axle models. We can customize the flat bed trailer to meet customer requirements. Before providing a detailed quotation, we will communicate with customer first, our engineers will then prepare a detailed quotation along with detailed drawings.
2 axles flatbed trailer | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Tare Weight | Approx. 5.5 T |
Dimension | 12500*2500*1500mm |
Loading Capacity | 40T |
Axle | 13T, 2 axles |
Tire | 12R22.5, 8+1 PCS |
Suspension | Mechical suspension |
King pin | 2.0 or 3.5inch, JOST brand |
Landing gear | JOST, 28 tons |
Main beam | Height is 500mm, material is Q345B carbon steel |
Side beam | 160mm channel steel |
Bottom plate | 3mm |
Twist lock | 8 PCS |
Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
40 Tons Flatbed Trailer for Sale
2 Axles Flatbed trailer manufacturer
Main structure: 2 axles flatbed trailer main structure is made of Q345B steel, featuring a uniform cross-section design for ensuring load-bearing performance.
Lightweight structure: Aluminum alloy accessories, such as legs, side guards, rear guards, and toolboxes. This design is lightweight, wear-resistant, and offers a long service life. The flatbed semi trailer has a strong corrosion resistance, effectively preventing rust and minimizing maintenance costs for customers.
Suspension system: Benhe 2 axles flat trailer features with high-strength, lightweight, and wear-resistant components. It consists of a series of lightweight leaf springs, high-strength tie rods, and supports designed to ensure balanced load distribution across each axle. This configuration effectively prevents the vehicle from veering off course and minimizes tire wear.
Braking system: 2 axles flat bed trailer adopts a complete set of components from internationally recognized brands and is equipped with ABS system.
Electrical system: Our flatbed truck trailer features an electrical system that utilizes well-known domestic brands, original components, a fully sealed wiring harness, and is equipped with an ISO standard seven-core socket.
Topcoat process: After material pretreatment, vehicle undergoes shot blasting, followed by primer application and topcoat spraying. We utilize paint from internationally renowned brands, ensuring that the surface treatment meets the Swedish Sa2.5 marine anti-corrosion standard.
flabed trailer with 6 pcs reinforced beams
Side beam adopts 16# channel steel

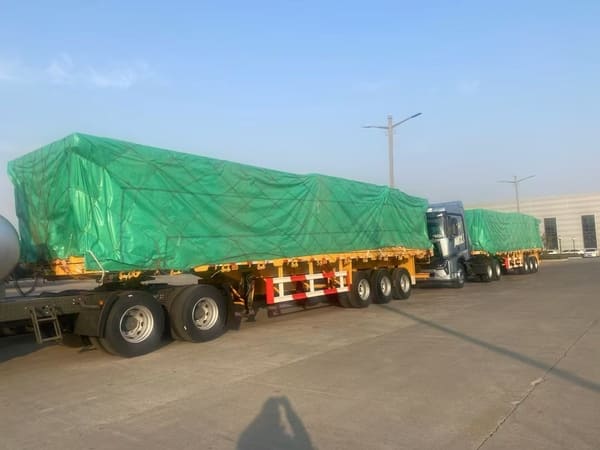

The entire vehicle is coated with wax and covered with a rain cloth before shipment to ensure that customers receive the flatbed trailer free from rust and damage.
Two axles flatbed semi trailer are typically transported by bulk carriers, container ships, or roll-on/roll-off vessels.
China Benhe Vehcile was established in 2010, we are a leading semi trailers manufacturer in China. Our main products include flatbed semi trailer, low bed semi trailer, fence semi trailer, fuel tanker trailer, dump trailer, cement bulker trailers, special-purpose semi-trailers and trailer parts. The production plant covers an area of 300,000 square meters and employs over 600 staff members. Thanks to our advanced technology, reliable quality, and exceptional service, we have successfully sold our products to more than 80 countries, including Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Kenya, Uganda, Mozambique, Namibia, Angola, Botswana, Malawi, Rwanda, Congo, Cote d'Ivoire, Sierra Leone, Senegal, Cameroon, Mali, Mexico, Chile, Ecuador, Saudi Arabia, United Arab Emirates, Uzbekistan, Kazakhstan etc.
China Benhe semi trailer factory
If you are interested in our semi trailers, please fill in the below inquiry blank.
