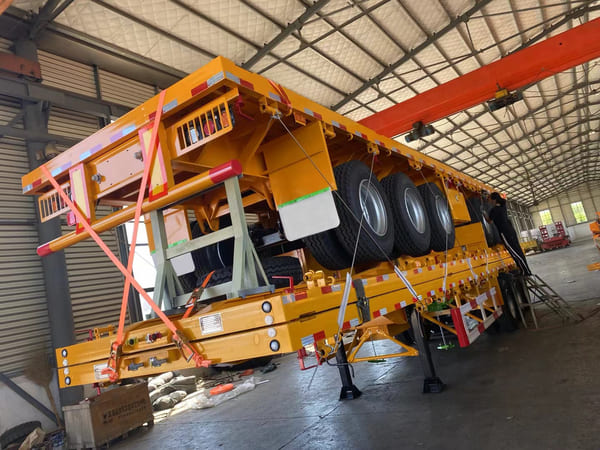

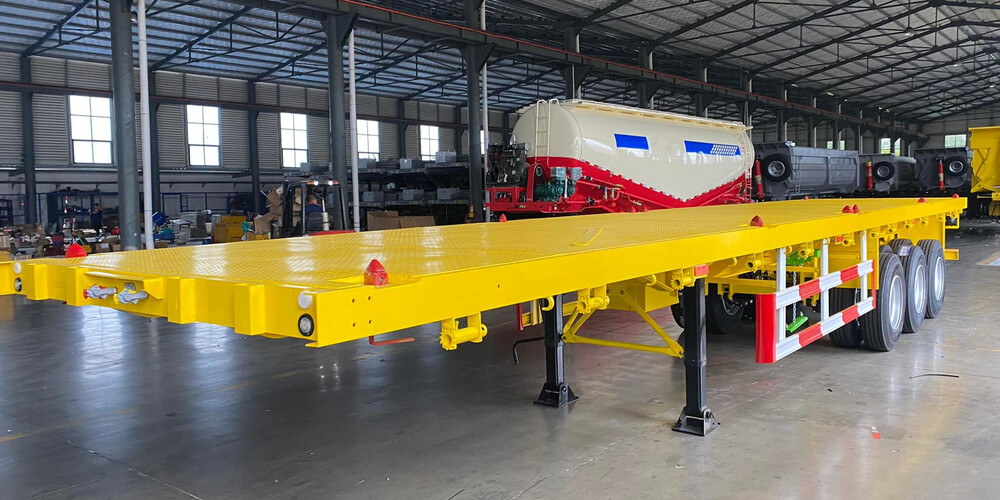

3 axles semi flatbed trailer is designed without railings or side guards, making it easy for forklifts, cranes, and other equipments to load and unload containers, construction machinery, steel, etc.
BENHE brand three-axle semi flatbed trailer with load capacity of 30 to 60 tons and is widely used in logistics transportation, engineering construction, and the handling of large equipment. It is particularly well-suited for transporting non-removable oversized and overweight goods.
The flat bed trailer load capacity and dimensions can be customized, strong load-bearing capacity, flexible loading and unloading, and adaptability to complex road conditions. Compared to drop side trailers, the flatbed design reduces self-weight and enhances fuel efficiency, making it an efficient choice for logistics transportation.
Please refer to the specifications of the 3 axles semi flatbed trailer below. The trailer's dimensions and load capacity can be customized to meet customer requirements.
3 axles semi flatbed trailer | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Tare Weight | Approx. 6.7 T |
Dimension | 12500*2500*1550mm |
Loading Capacity | 50T |
Axle | 13T, 3 axles |
Tire | 12R22.5, 12+1 PCS |
Suspension | Mechical suspension |
King pin | 2.0 or 3.5inch, JOST brand |
Landing gear | JOST, 28 tons |
Main beam | Height is 500mm, material is Q345B carbon steel |
Side beam | 160mm channel steel |
Bottom plate | 3mm |
Twist lock | 12 PCS |
Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |

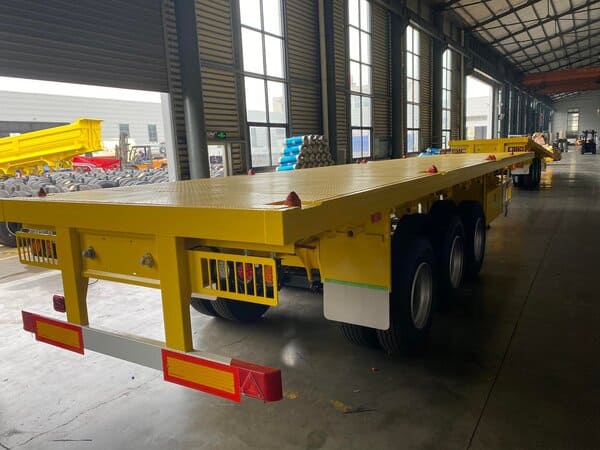

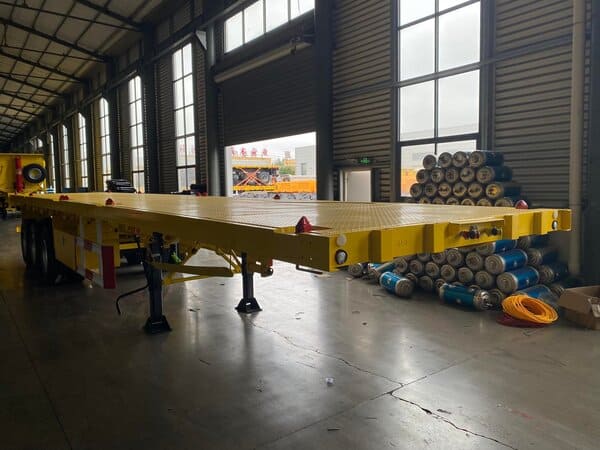

50 Tons Semi Flatbed Trailer
3 Axles Flatbed Trailer Price
Sophisticated production technology: semi flatbed trailer main beam is welded with a fully automatic arc welding machine. All trailer parts undergo shot peening, which significantly improves paint adhesion.
Strong frame: flatbed trailer is made of high-strength steel plates, longitudinal beams and integral through-type cross beams. This design ensures a reasonable structure, strong load-bearing capacity, and resistance to permanent deformation.
High quality axles: Benhe semi flatbed trailer use Chinese famous brand axles or BPW axles, with optional ABS anti-lock braking systems to enhance driving safety.
Thinckened suspension: Widened and thickened spring suspension, leaf spring thickness 16mm and width 90mm, providing high strength and strong impact resistance.
Wabco brake system: safe and reliable dual-circuit air brake system. Wabco brake valve, equipped with 16 tons of brake pads, significantly enhances safety during operation.
flabed trailer with 6 pcs reinforced beams
Side beam adopts 16# channel steel
The entire vehicle is coated with wax and covered with a rain cloth before shipment to ensure that customers receive the flatbed trailer free from rust and damage.
Two axles flatbed semi trailer are typically transported by bulk carriers, container ships, or roll-on/roll-off vessels.
