The 60 tons detachable gooseneck lowbed trailer is made of high-strength HG60 steel, making it suitable for transporting construction machinery, large equipment, and other goods, with a rated load capacity of 60 tons. Its key feature is the detachable gooseneck structure, which can be quickly separated using bolts and hydraulic systems to facilitate low-platform loading. The working deck height from the ground is usually ≤1 meter, which is convenient for easy loading and unloading of heavy equipment.

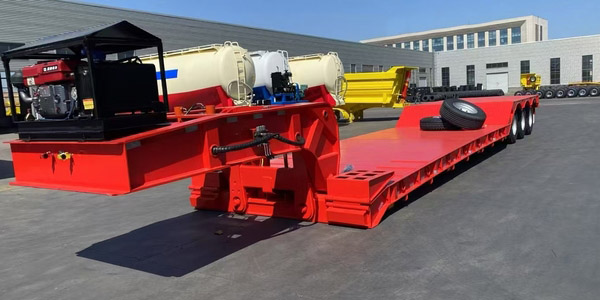

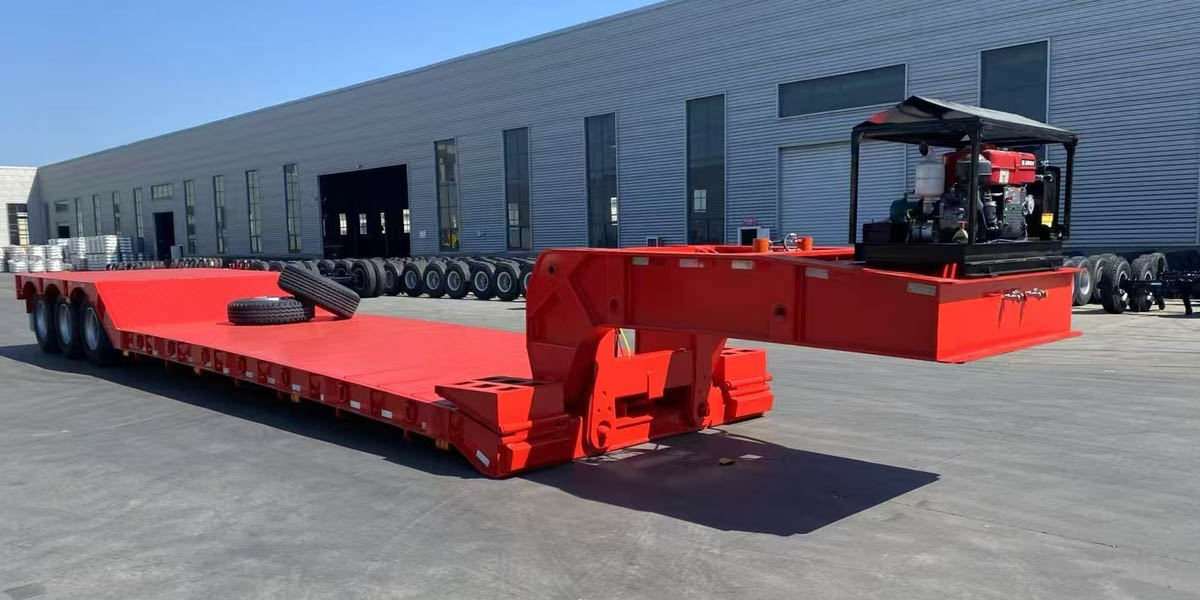

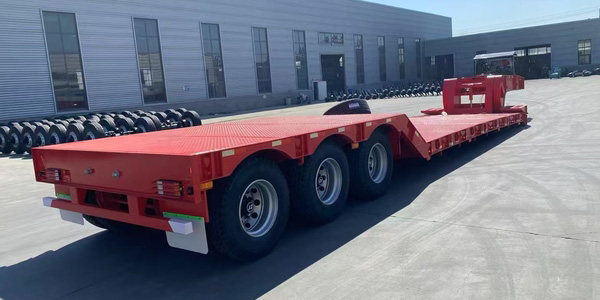

This picture displays our 3 axles 60 tons detachable gooseneck lowbed trailer. The working platform length is 8 meters, width is 3 meters, and the total length of the trailer is 16.5 meters. The detachable gooseneck trailer dimensions and load capacity can be customized according to customer needs.
BENHE Vehicle brand 3 axles 60 tons detachable gooseneck lowbed trailer widely praised by customers, we earn customer trust through quality products and service, leading customers choose us among many Chinese manufacturers.
60 tons detachable gooseneck lowbed trailer | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Overall Dimension | 16500mm x 3000mm x 2200mm |
Loading Capacity | 60T |
Axle | 3 axles |
Gooseneck | Detachable gooseneck |
Main Beam material | HG60 high strength steel |
Extensions | 250mm each side |
Bottom Platform | 5mm checkered plate |
Loading platform length | 8000 mm |
Loading platform height | 800mm |
Suspension | Mechanical suspension |
Height | Loading deck range: 380-880mm Axle deck range: 780-1280mm |
Kingpin | 2"(50mm) or 3.5"(90mm) |
Tire Size * NO. | 12R22.5 & 12 pcs |
Rim Size * NO. | 9.0*22.5 &12 pcs |
60 tons detachable gooseneck lowbed trailer price
China 60 tons detachable gooseneck lowbed trailer manufacturer
High Load Capacity
The 60 tons detachable lowbed trailer adopts a reinforced frame and high-strength plates, ensuring long-term stability during high-load transportation without deformation and breakage.
Gooseneck Detachable Structure
The lowbed gooseneck and working platform are designed for quick separation, large machinery can drive onto the platform via the front ramp, don't need to lift machines on the trailer.
Low Cargo Platform Height
The working deck height of the removable gooseneck lowboy trailer is 800 mm, which lowers the center of gravity of the cargo and enhances driving safety.
High-Strength and Lightweight Design
The HG60 high-strength steel and aluminum alloy composite structure is 15-20% lighter than traditional models, weighing approximately 2-3 tons less, impoving single-trip transportation efficiency.
All-Terrain Passability
Benhe brand front load lowboy trailer can be equipped with an optional steering axle, reducing the turning radius by 30%, suitable for working in narrow spaces such as ports and construction sites.
Prior to shipping, the detachable gooseneck lowbed trailer must be fully waxed and wrapped in waterproof tarps to protect against seawater corrosion.
Q: What is your payment method?
A: 30% deposit TT payment, rest balance paid before shipping.
Q: Trailer production time?
A: Usually we produce within 15-25 days after get 30% deposit.
Q: What's your warranty policy?
A: The vehicle frame is guaranteed for 3 years, excluding wearing parts, under normal use if there is damage to the spare parts, we will provide our customers new spare parts with free.
Q: How do you transport the semi trailers?
A: We transport the trailer by RO-RO ship, bulk cargo ship or 40HQ standard container or even 45HQ container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping price.
Q: What are your main products?
A: We can provide and supply your various trailers such as heavy-duty low bed semi trailer, flatbed container semi trailers, skeleton container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tank trailer, fuel tank semi trailer, stainless steel tank semi trailer, aluminum alloy tank semi trailer, car carrier semi trailer, full trailer, super-link trailer, trucks, spare parts, and can be manufactured as special design.
