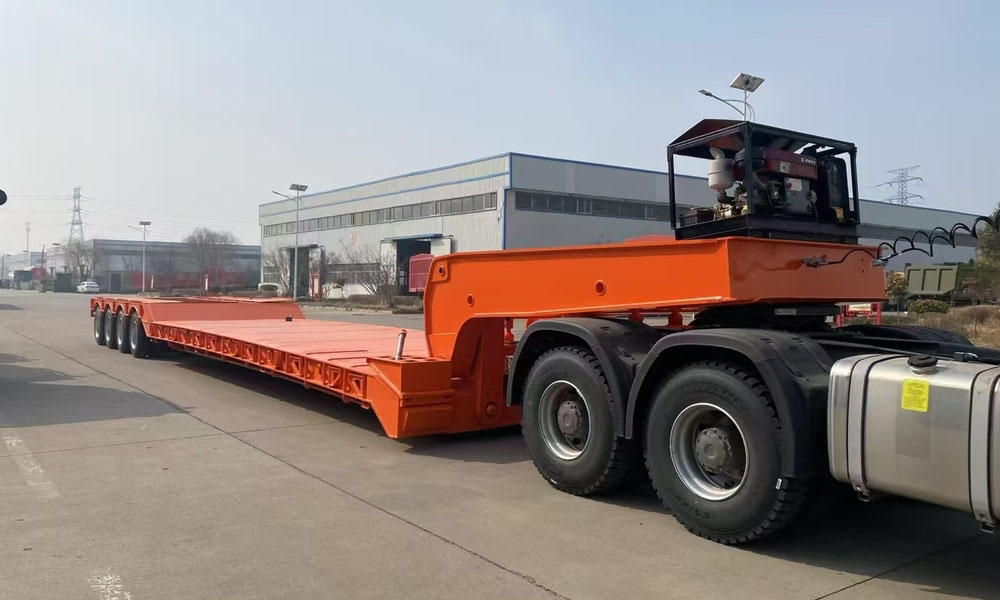

The 4 axles 120 tons front loading lowbed trailer is specifically designed for heavy-duty transportation. It features a gooseneck structure that enhances driving stability by lowering the height of the cargo platform. Additionally, the gooseneck detachable design makes it easier to load and unload large equipment from the front. This trailer, equipped with 4 axles and a load capacity of 120 tons, is constructed from high-strength HG60 steel and heavy-duty mechanical suspension to effectively disperse load pressure and adapt to complex road conditions.
The front loading lowbed trailer deck platform height is usually 800-1100mm from the ground, and the platform width is usually 3000-3500mm, which can meet the transportation requirements for oversized and overweight goods.
BENHE Vehicle brand 4 axles 120 tons front loading lowbed trailer widely praised by customers, we earn customer trust through quality products and service, leading customers choose us among many Chinese manufacturers.
4 axles 120 tons front loading lowbed trailer | |
Manufacturer | Jinan Benhe Machinery Co.,Ltd |
Overall Dimension | 19000mm x 3000mm x 2500mm |
Loading Capacity | 120T |
Axle | 4 axles |
Gooseneck | Detachable gooseneck |
Main Beam material | HG60 high strength steel |
Extensions | 300mm each side |
Bottom Platform | 5mm checkered plate |
Loading platform length | 9000 mm |
Loading platform height | 800mm |
Suspension | Mechanical suspension |
Height | Loading deck range: 380-880mm Axle deck range: 780-1280mm |
Kingpin | 2"(50mm) or 3.5"(90mm) |
Tire Size * NO. | 12R22.5 & 16 pcs |
Rim Size * NO. | 9.0*22.5 &16 pcs |

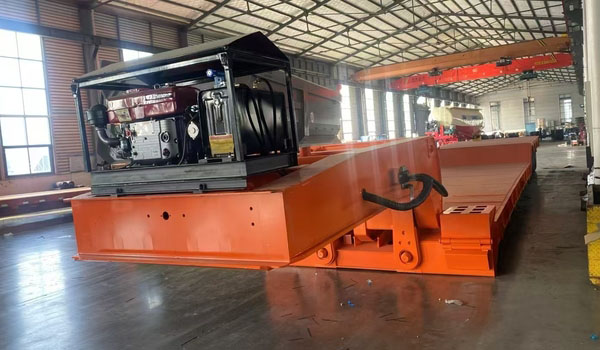

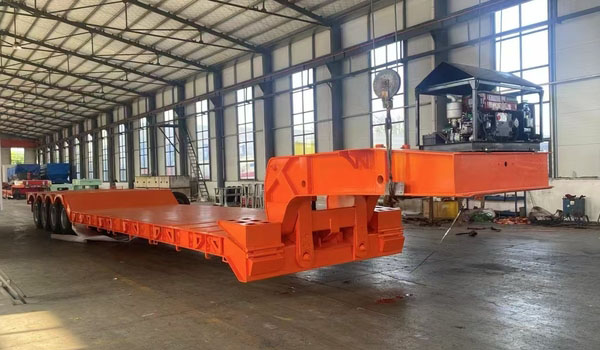

4 axles 120 tons front loading lowbed trailer for sale
Front loading lowbed trailer Manufacturer
High load-bearing capacity：
The main beam of front loading lowbed trailer is made of HG60 high-strength steel, and its load-bearing capacity is more than 3 times that of ordinary lowbed steel Q345. The steel will not deform or break under heavy load.
Low working paltform:
The cargo platform height is 700-1100mm, the center of gravity is more stable, and the risk caused by overheight during transportation is reduced.
Easy loading and unloading:
For the removable gooseneck design, we can load and unload goods from the front, which is safer and more convenient.
High-strength steel:
Wear-resistant steel plate + box beam structure, long-term heavy load without deformation, extended service life, suitable for frequent high-intensity operations.
Easy maintenance and low cost:
Modular components (such as axles and suspensions) can be quickly replaced if damaged, reducing maintenance time and cost, and accessories are internationally compatible.

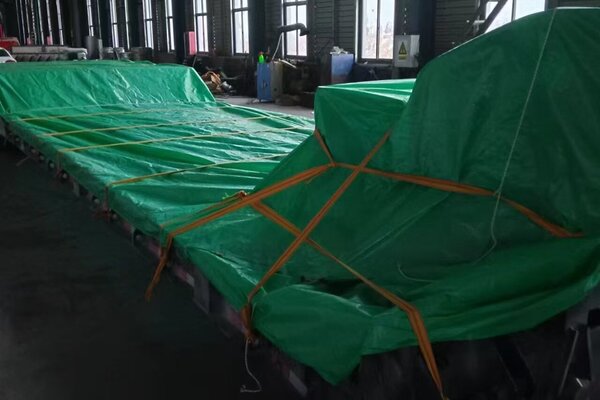

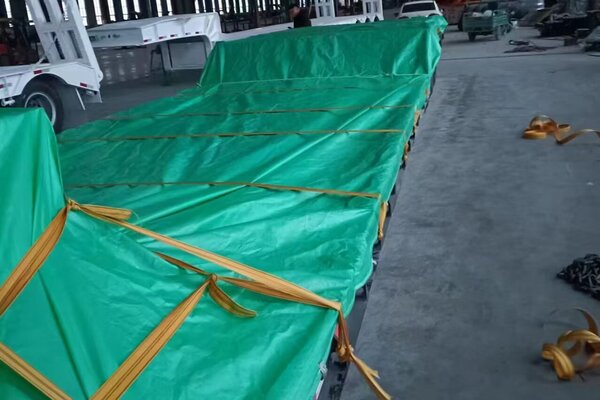

Prior to shipping, the detachable gooseneck lowbed trailer must be fully waxed and wrapped in waterproof tarps to protect against seawater corrosion.
