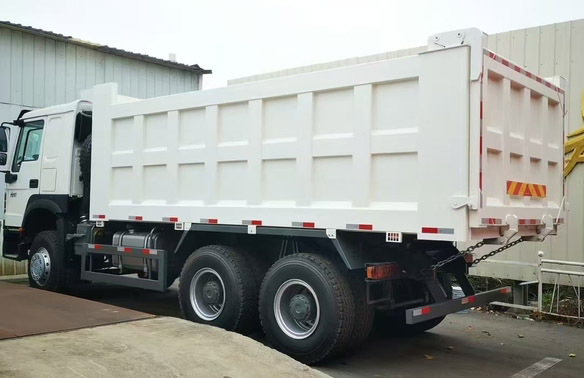

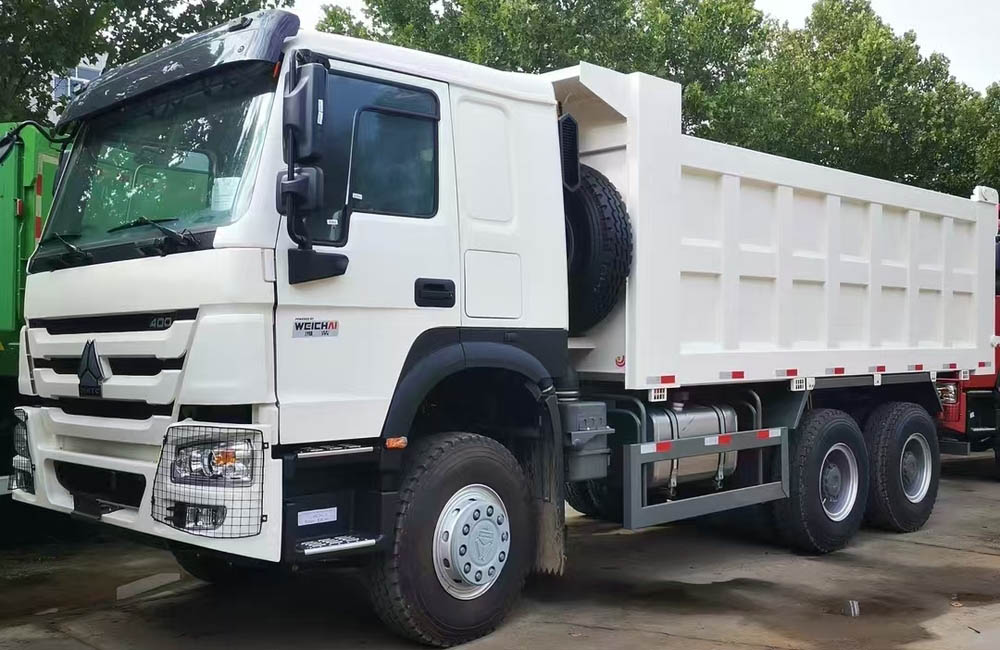

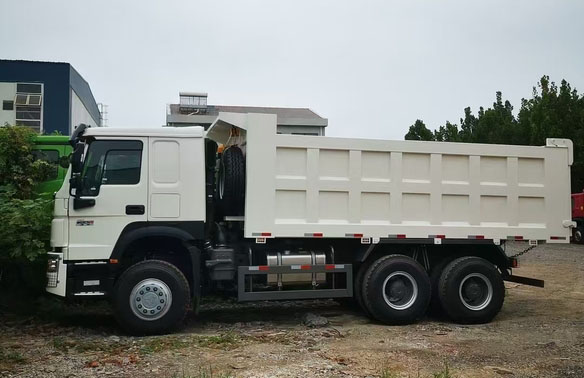

HOWO dump truck is an important brand of Sinotruk Group, it is mainly used in engineering construction, mining transportation,used for carrying sand, stone, soil, ore, gravel, and other aggregates.
Auto-Stripping Function
Hydraulic system: HOWO dump truck is equipped with a hydraulic lifting system that allows the carriage to tilt automatically, facilitating the rapid unloading of materials.
Unloading method: The carriage can be tilted backward or to the side, depending on the model and design
HOWO dump truck is equipped with powerful engines, Weichai engine and utilizes Sinotruk MAN technology, making it well-suited for complex road conditions.
HOWO dump truck constructed from high-strength steel, ensuring exceptional load capacity and durability.
HOWO dump truck cab design is humanized, equipped with air conditioning, airbag seats, etc. to improve driving comfort.
HOWO dump truck equipped with ABS, exhaust brake, and other systems, to ensure driving safety.
HOWO trucks have been successfully sold in Africa, Southeast Asia, Central Asia, the Middle East, and other markets, receiving positive feedback from customers. If you are interested in HOWO trucks, please do not hesitate to contact us. We are committed to providing you with the best products and service.
Dimension(L×W ×H) | 8450×2550×3450 |
Cargo body size (L×W×H) | 5600*2300*1500mm |
Approaching angle/Departure angle（°） | 19/21 |
Overhang(front/rear) (mm) | 1430/2095 |
Wheel base (mm) | 3800 |
Front Axle Weight（kg） | 9500(Kg) |
Rear Axle Weight（kg） | 16000*2(Kg) |
Actual loading（kg） | 30000-60000 |
Actual loading（kg） | |
Engine (made in China) model | WP12.430E201 |
Fuel type | Diesel |
Displacement (ml) | 11596 |
Power(kw) | 316 |
Emission | EURO Ⅱ |
Fuel tanker capacity | 300L |
Transmission | HW19710，10 forward&2 reverse |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Front axle | Steering with double T-cross section beam |
Rear axle | Cast axle housing, central double reduction with differential locks between axles and wheels |
