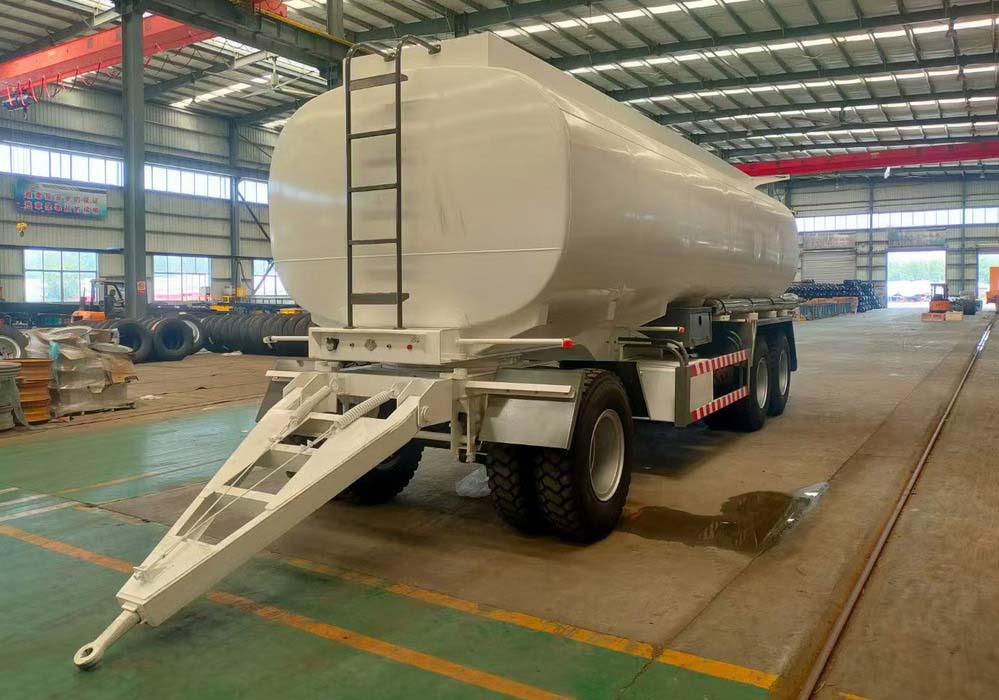

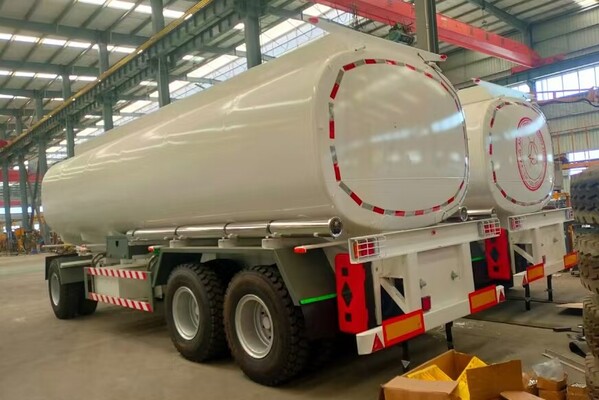

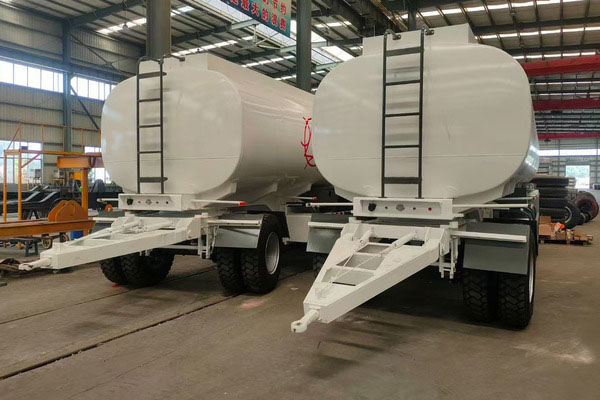

BENHE drawbar fuel tanker trailer is specifically designed for transporting liquid fuels, such as petrol, diesel, and palm oil etc. Different from fuel tanker semi-trailers, the total weight of the drawbar fuel tanker trailer is supported by its own axles and is connected to the tractor via a drawbar.
The drawbar fuel tanker body is usually made of carbon steel or stainless steel, with wave-breaking plates inside to reduce liquid sloshing, and is equipped with safety systems, including pressure relief valves and emergency shut-off devices, to ensure stability and safety during transportation.
Flexible combination:
The drawbar fuel tanker trailer can be separated from the tractor for easy loading and unloading or temporary parking, which improves the dispatching efficiency.
Anti-corrosion of tank body:
The tank body is mostly made of carbon steel, stainless steel or aluminum alloy, which has anti-corrosion and anti-leakage functions.
Safety protection:
Full fuel tanker trailer is equipped with static elimination device, wave-breaking plate, emergency shut-off valve and fire extinguisher, etc.
Multi-compartments design:
The draw bar fuel tanker trailer can designed with multiple compartments, to transport different oil products at the same time to avoid mixed loading and pollution.
High driving stability:
Low center of gravity, long wheelbase, ESP or ABS system, it can reduce the risk of rollover.
Adapt to complex road conditions:
Reinforced suspension, large-size tires, etc., the drawbar fuel tanker suitable for long-distance or remote areas (such as mining areas and oil fields) transportation
Drawbar fuel tanker trailer manufacturer
Full fuel tanker trailer for sale
Overall dimension: 8000mm*2500mm*3700mm
Volume: 20000 liters or customized
Tanker body: 4mm thickness, cover head 5mm
Compartment: 2 compartments or customized
Suspension: Heavy duty mechanical suspension,
Leaf spring: 90 x 13mm, 10 pcs
Axles: 3 axles, 13t
Tire: 12 units
Brake system: WABCO
Electical system: 24V , LED lights
