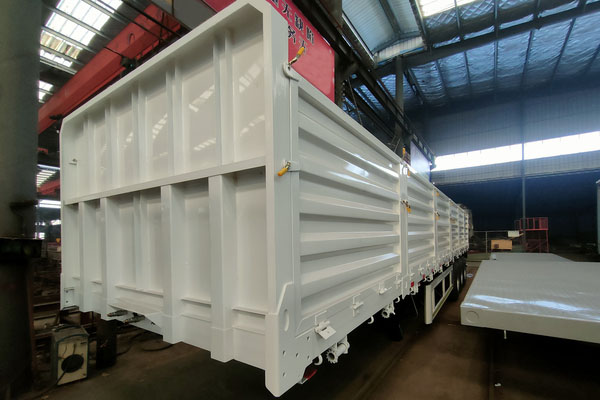

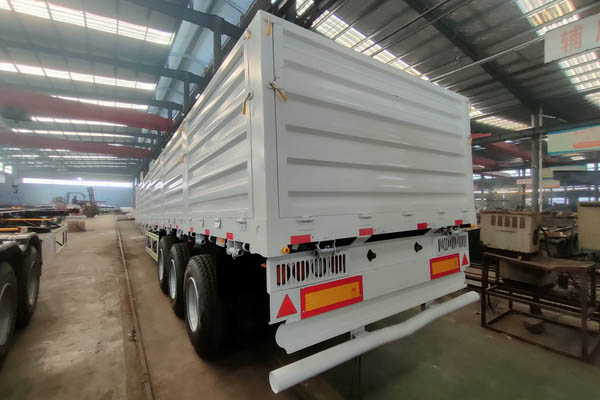

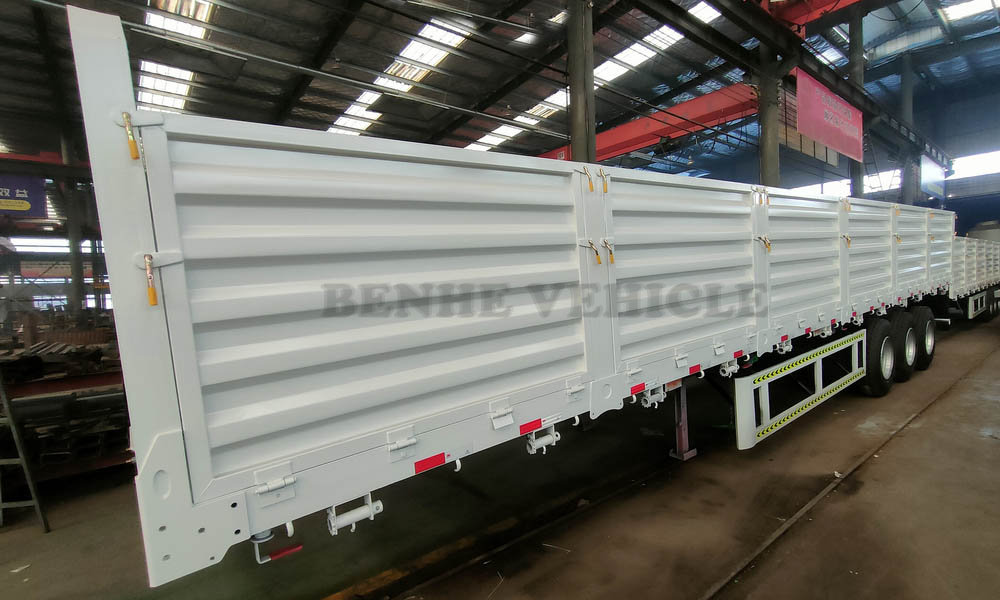

40ft sideboard trailer is widely used for transporting bulk cargo, including cement bags, grain, and general building materials. The surrounding side boards can be adjusted to a height of 600 to 1200 mm to protect the transported goods from falling.
The surrounding sideboards can also be disassembled based on the usage scenario. Our 40 ft sideboard trailer is equipped with 12 container locks and can transport both 20-foot and 40-foot containers. The conventional 3-axle sidewall flatbed trailer has a carrying capacity of 30 to 80 tons.
The 40 foot sideboard trailer is mainly made of carbon steel, main beam height of 500mm, upper flange of 14mm, lower flange 16mm, and web plate of 8mm; three axles, each rated for 13 tons, allowing it to support a maximum load of 70 tons. Additionally, the dimensions and load capacity can be customized to meet customer specifications.
Dimensions | 12,500 x 2,500mm (L X W) |
Load capacity | 70 Tons (customized) |
Side boards | 800mm, 1000mm, 1200mm height (customized) |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 14mm ；Middle plate: 8mm Down plate: 16mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 13(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | JOST brand, 28 Tons |
Braking system | WABCO Emergency relay valve |
| Container Twist Lock | 12 pcs (Optional) |
Tire Type & Size * NO. | 12R22.5, 12 + 1 pcs |
Rim Size * NO. | 9.00*22.5, 12 + 1 pcs |
China 40ft sideboard trailer supplier
Side wall trailer manufacturer
Patterned plate: The sideboard trailer adopts 3mm anti-skid patterned plate, to prevent goods from slipping during transportation.
Reinforced beam: The gooseneck of the reinforced beam is strengthened with double-layer plates, and the entire vehicle is reinforced at over 20 locations to enhance its load-bearing capacity and extend its service life.
Heavy-duty suspension: The suspension thickness is 8 mm, and the pin diameter is 70 mm, making it more suitable for use in complex road conditions.
Braking system: BENHE side wall trailer adopts 13-ton axles and 16-ton brake linings, which reduce the braking distance and enhance the trailer's safety.
Robot welding: Fully automated robotic welding ensures consistent quality, aesthetically pleasing welds, and high strength.
Well-known accessories: Our drop side trailer is equipped with high-quality components, including BPW axles, JOST outriggers, JOST towing pins, WABCO brakes, and ABS, etc., to ensure the trailer is more durable.
Waterproof wax is sprayed before leaving the factory, and covered with waterproof rain cloth.
Choose the most cost-effective transportation method for customers based on the number of required by customers. There are generally 3 units side wall semi trailers as a stack for shipment, ,bulk shipment, Ro-Ro shipment, container shipment.
