BENHE brand 40CBM rear tipper trailer is our most popular product, it is widely used in mining, quarrying, construction sites, agriculture, and other fields. Loading and unloading are very convenient. The hydraulic cylinder lifts the cargo box to a certain angle, allowing the rear door to open automatically, enabling the materials to flow out.

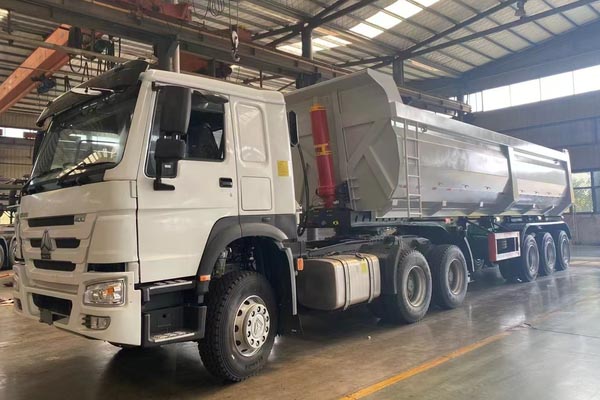

The rear tipper trailer is towed by a tractor truck, which transmits power to the hydraulic system of the trailer through the power take-off, enabling the vehicle to operate effectively. The image above depicts our 40 cubic rear dump trailer, most rear dump trailers have a capacity ranging from 25 to 45 cubic meters. If you require a larger size, we can also customize the trailer to meet your specifications.
Our end dump trailer are available in two types: square and U-shaped. The U-shaped is more suitable for transporting sand, soil, etc., and the unloading is clean without any residue. The square rear tipping trailer is more suitable for transporting stones, with large load-bearing capacity and strong impact resistance.
Dimensions | 10000*2600*3500 mm |
Cargo box dimensions | 9300*2400*1800 mm |
Loading capacity | 40 CBM |
Axle | 16 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel, T700 and Hardox 450 |
Side Plate | 6.0mm |
Bottom Plate | 8.0mm |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 6 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Type & Size * NO. | 12R22.5 & 12 pcs |
40CBM rear tipper trailer manufacturer
3 axles end dump trailer for sale
Strong Load Capacity:
The chassis and cargo box of the rear tipper trailer are constructed from high-quality steel, with a thickness that is 1.5 times greater than that of competing products on the market. This design ensures that our tipper trailer has strong load-bearing capacity, excellent impact resistance, and no deformation.
Strong oil cylinder:
BENHE brand 40CBM rear tipper trailer adopts Hvya214 oil cylinder, which has a large oil cylinder diameter and strong lifting capacity, increasing transportation efficiency.
Anti-rollover device:
Our 40 cubic meter rear tipping semi trailer is equipped with an anti-rollover device and a safety lock, ensuring that there will be no rollover accidents when working, the operation is safe, which is very important for our customers.
Easy Unloading:

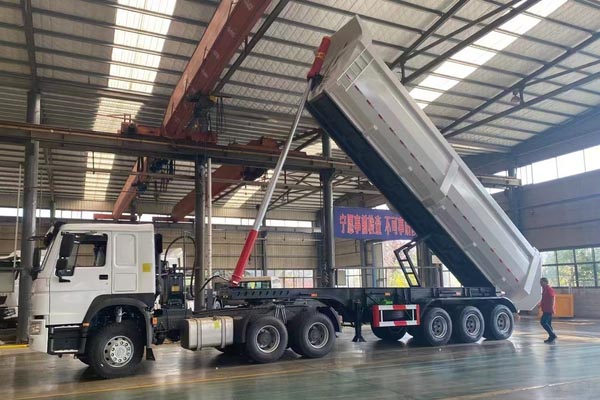

Once the oil cylinder raises the cargo box to a specific angle, the rear door of the dump semi trailer will automatically open, facilitating the unloading process. The driver is the only one required to complete the unloading work.
Optional configuration:
Customers have the option to use carbon steel, wear-resistant steel Hardox 450 or stainless steel for the cargo box, depending on their specific usage requirements.
Low-cost maintenance:
Our dump semi-trailer has a simple structure, uses international general accessories, convenient maintenance, low maintenance costs.
The rear tipper trailer is sprayed with wax and covered with rain cloth before leaving the factory
We can choose bulk carrier, ro-ro ship, container or flat rack container for shipment.
Jinan Benhe Machinery Co., Ltd (BENHE VEHICLE) is a leading manufacturer of rear tipper semi trailers based in China. With over 15 years of experience in production and export, we specialize in high-quality dump trailers. Our products have been successfully exported to numerous countries, including Nigeria, Ghana, Sierra Leone, Senegal, Tanzania, Kenya, Uganda, Zambia, Zimbabwe, and other nations across Africa. Saudi Arabia, the UAE, the Philippines, Vietnam, Uzbekistan, Tajikistan, and various other Asian countries. In the Americas, our dump trailers have reached customers in Chile, Peru, Mexico, Ecuador, Suriname, Guyana, and more. We take pride in the positive feedback we receive from our satisfied customers regarding the quality and performance of our dump trailers.
