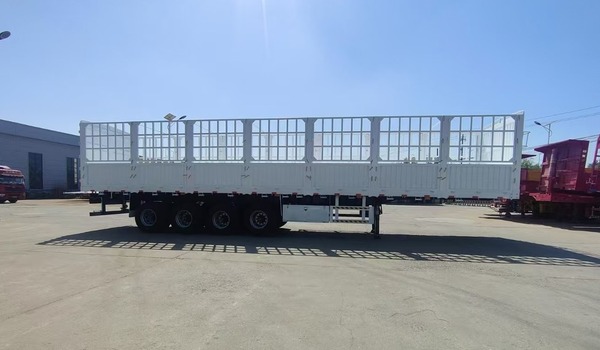

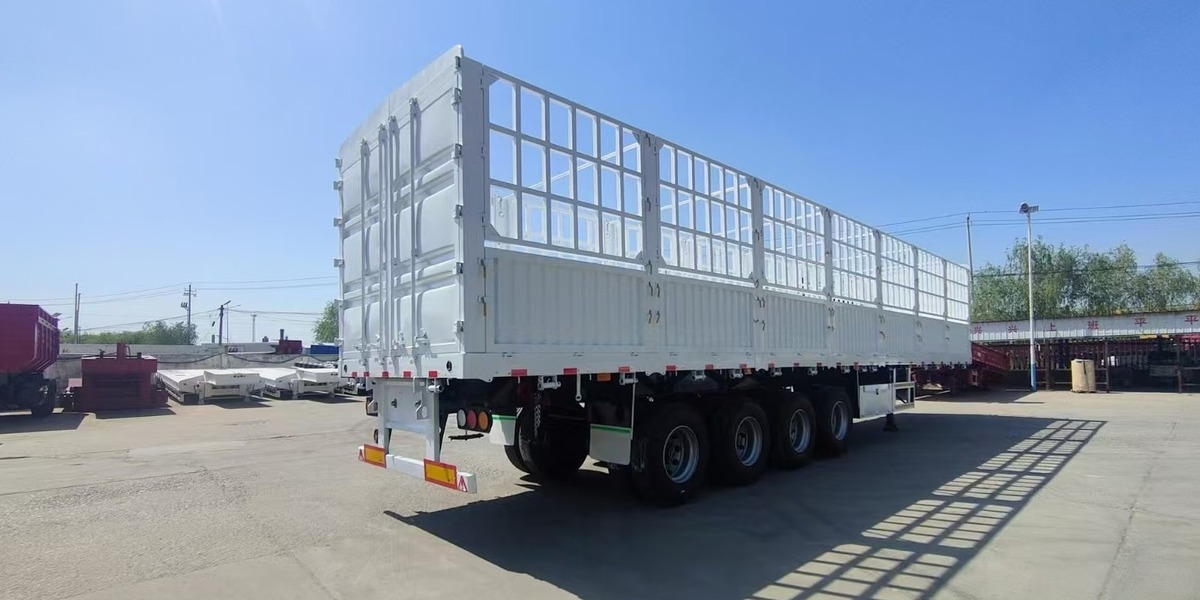

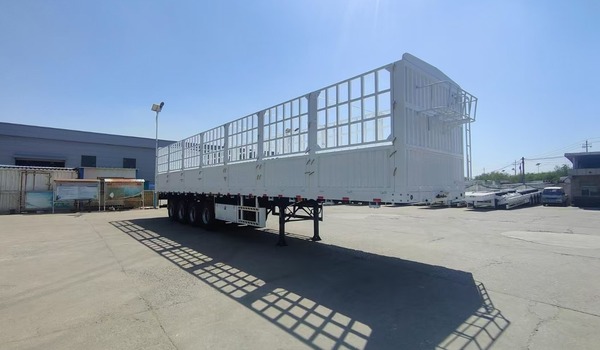

4 axles cargo transport fence trailer is widely used in logistics transportation. Its structural feature is the 4-axle design, which provides a strong carrying capacity, making it suitable for medium- and long-distance transport. The cargo box surrounding and top are composed of openable fences, which is convenient for loading and unloading and ventilation of goods. This fence semi trailer is particularly well-suited for transporting agricultural products, daily necessities, light industrial goods, and other goods that require moisture protection and heat dissipation.
The four-axle cargo transport fence trailer has a load capacity of up to 90 tons. It is equipped with a high-strength steel frame and a heavy-duty spring suspension to ensure durability and safety under complex road conditions.
The 4 axles cargo transport fence trailer is a specialized transport vehicle with a large load capacity and multi axle design, suitable for medium and long-distance transportation of building materials, grain, bulk cargo, etc
Name | 4 axles cargo transport fence trailer |
Manufacturer | JINAN BENHE MACHINERY CO.,LTD |
Dimensions | 13,500 x 2,500mm x 3,600mm (L X W X H) |
Load capacity | 90 Tons |
Fence height | 1,800mm or 2,000mm |
Axle | 13 Tons, 3 axles, factory configuration (FUWA / BPW optional) |
Main Beam | Q345 Manganese Steel Main beam height: 500mm Upper plate: 20mm ；Middle plate: 8+8mm Bottom plate: 22mm |
Side Beam | 160mm Channel Steel |
Bottom Plate | 3.0mm checkered plate |
Suspension | Heavy duty mechanical suspension |
Leaf Spring | 90(W)mm x 16(Thickness)mm x 10 layers, 4 Sets |
Kingpin | JOST brand, 2.0 or 3.5inch (bolted or welded type) |
Landing Gear | 28 Tons |
Braking system | WABCO Emergency relay valve |
Tire Size * NO. | 12R22.5 & 16+1 pcs |
4 axles cargo transport fence trailer for sale
4 axles cargo transport fence trailer manufacturer
High Load-Bearing Capacity
90 tons rated load, greater than that of ordinary trailers, suitable for bulk cargo transportation, reduced shipping frequency and costs.
Multi-Axle Design
The four-axle structure distributes load pressure, decreases the load on a single axle, improves driving stability, and reduced damage to the road surface.
Removable Fence
The surrounding fences are removable, suitable for bulk grain, building materials, machinery, equipment, and other items, making loading and unloading easy.
High-Strength Frame
The fence cargo trailer is made of high-quality Q345 steel and lightweight aluminum alloy, while considering durability and load requirements, can extend the service life.
Wide Adaptability
The 4 axles cargo transport fence trailer can accommodate tractors with varying horsepower, 400 horsepower or more. It is suitable for use on plains, hills, and various other road conditions.
Low Maintenance Costs
Simple structure, international universal accessories, easy to purchase and replace, and reduce maintenance costs.

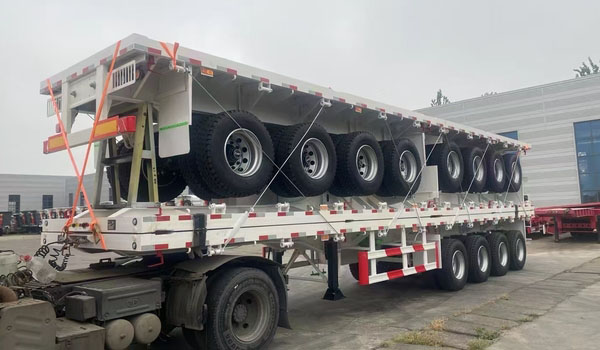

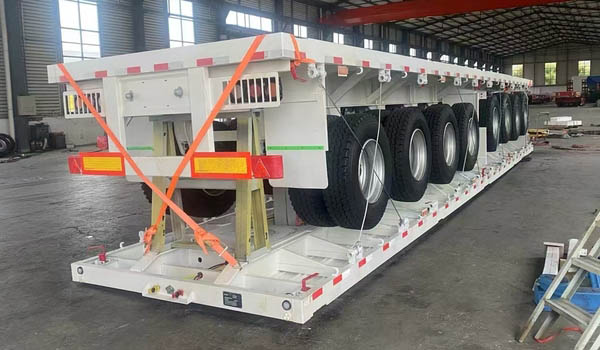

Before shipping the fence cargo semi-trailer, it will be sprayed with wax and covered with rain cloth at the factory to prevent rusting of the vehicle during sea transportation
Shipment by bulk carrier, ro-ro or container.
